Edge dials

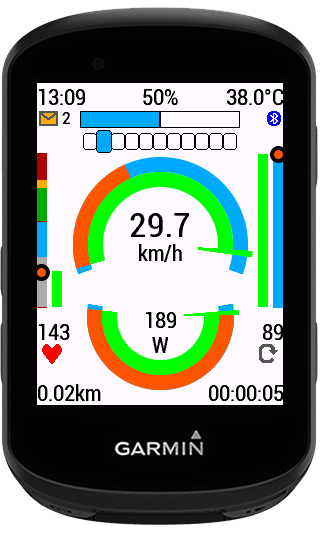

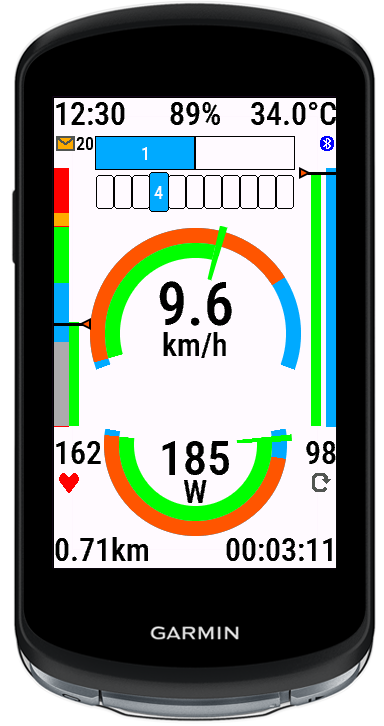

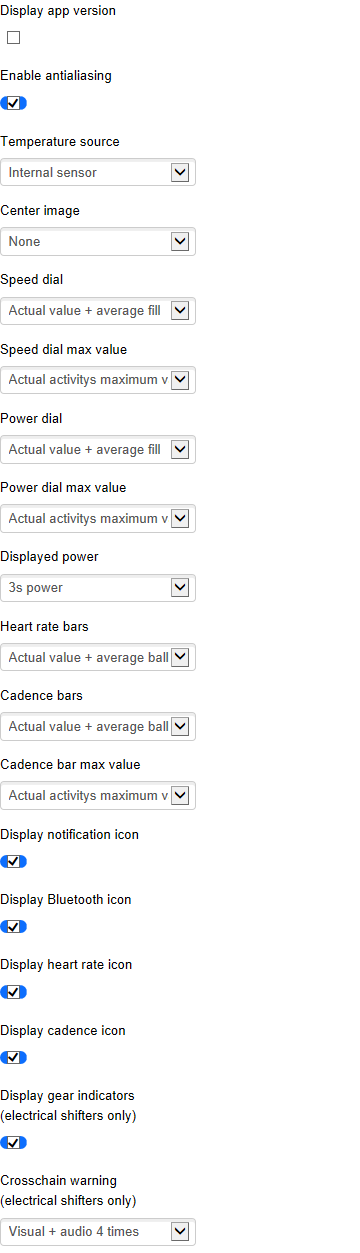

Full screen datafield for Edge x30, x40 and x50 bike computers. If you like my application, you can always invite me for a coffee. :) paypal.me/balmesz001 _______________________________________________________________________________________________ SETTINGS: Please note that you can hide fields that you dont need from the settings. Also, always show and automatic (show only once data received) options are available too. For settings: OPTION1: open Garmin Connect / connect your bike computer to your phone / select your bike computer / Activities, Apps & More / Data Fields / Edge Dials / Settings. It will take a few seconds to load the settings page. OPTION2: open Connect IQ Store / connect your bike computer to your phone / select your bike computer / My data fields / Edge dials / Settings. It will take a few seconds to load the settings page. _______________________________________________________________________________________________ DATAFIELD UPDATE: For some reason it can be tricky to update datafields via Garmin apps. For me, the update button never worked, it always showed that the request was queied but it was never updated actually. What works for me is reinstalling the data field: 1. open the ConnectIQ app. 2. connect your Edge. 3. tap on the Edge icon. 4. select "My Data Fields". 5. select "Edge Dials". 6. wait a few seconds (or until the "download complete" message appears on the device) 7. force-stop (!) ConnectIQ app. 8. open ConnectIQ app. 9. select "Search", then search for "Edge Dials". 10. open "Edge dials". 11. select "Install". 12. wait a few seconds (or until the "download complete" message appears on the device). 13. done _______________________________________________________________________________________________ DATA DISPLAYED: -current speed (average and max on dials) -power: actual, 3s and 10s (average and max on dials) -current heart rate (average with bars only). Visualised within the HR zone limits. -current cadence (average and max with bars) -total distance -activity timer -time of day -gear indexes for electronic shifters (tested with Di2 and eTap) + cross chain alarm -temperature has 2 options: 1. Internal temperature sensor: please note that due to the limitations of the system, the temperature value is refreshed only in every 5 minutes. As a result it's not accurate all the time and in some cases it may show empty value for several minutes after displaying the data field. Also, the sensor is inside the device, hence it returns the internal temperature which can be inaccurate in some cases. 2. Weather data: temperature is downloaded from the connected phone. _______________________________________________________________________________________________ PERMISSIONS REQUIRED: Run in the background: needed to read temperature sensor data. Fitness profile: to read and display HR zones. Sensor data: for cadence, power and other metrics.

1.8.33: -Bug fix: on 1050 devices, notification count text Y position is now aligned with the notification icon. 1.8.32: -Bug fix: when "automatic - date" option was selected, the bike computer displayed the date always even when an electronic shifting system was connected. Now when this option is selected, gear indicators will be displayed when data becomes available. 1.8.31: -HR and cadence bars width reduced, gap increased between bars. 1.8.30: -Edge 1050 compatibility added. Other minor changes in the code. 1.7.30: -ride detail table visual update. 1.7.29: -date display bug fixed. 1.7.28: -option added to show ride details when power sensor is not available. 1.6.27: -option added to show date when gear data is not available. 1.6.26: -fixed bug for 540, 840 & 1040 devices (Bluetooth status icon didn't appear). 1.6.25: -fixed bug for 540, 840 & 1040 devices (power, gear indicators and notifications didn't appear). 1.6.24: -custom font used to increase readability for 540, 840, 1030 and 1040 devices and to standardize design for all supported Edge models. -gear number display option added to gear indicator field. -battery text size reduced when 12h time format is active to avoid overlap between battery status and time. -horizontal line option added for HR and cadence average value visualization for better visibility. -fixed crosschain warning icon Y location on 1030 & 1040 devices. -automatic display option added for gear indicator, cadence, heart rate and power (fields displayed only when data is available) -notification font color bug fixed -edge radius is now adjustable for gear indicator rectangles -adjustable gear indicator fill color ________________________ NEXT PLANNED UPDATE(S): ________________________ -directions/bearing as center image. -bike radar info as center image.
