LightUp

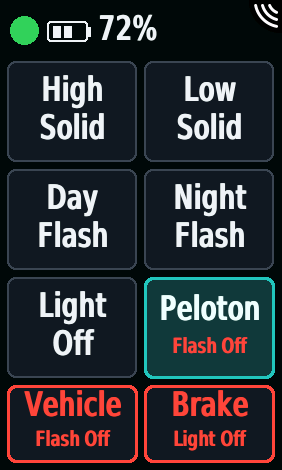

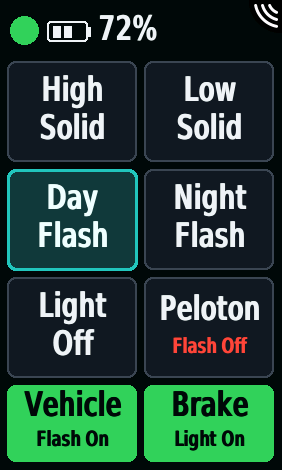

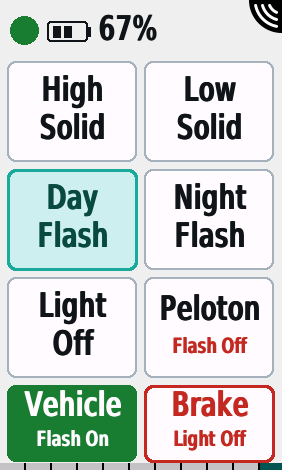

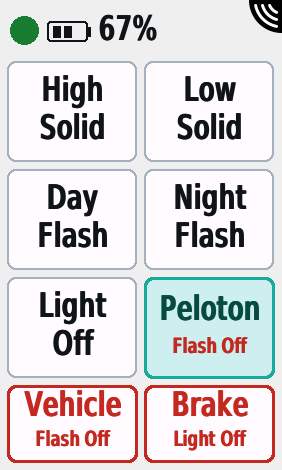

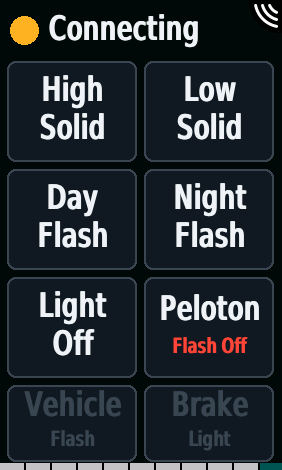

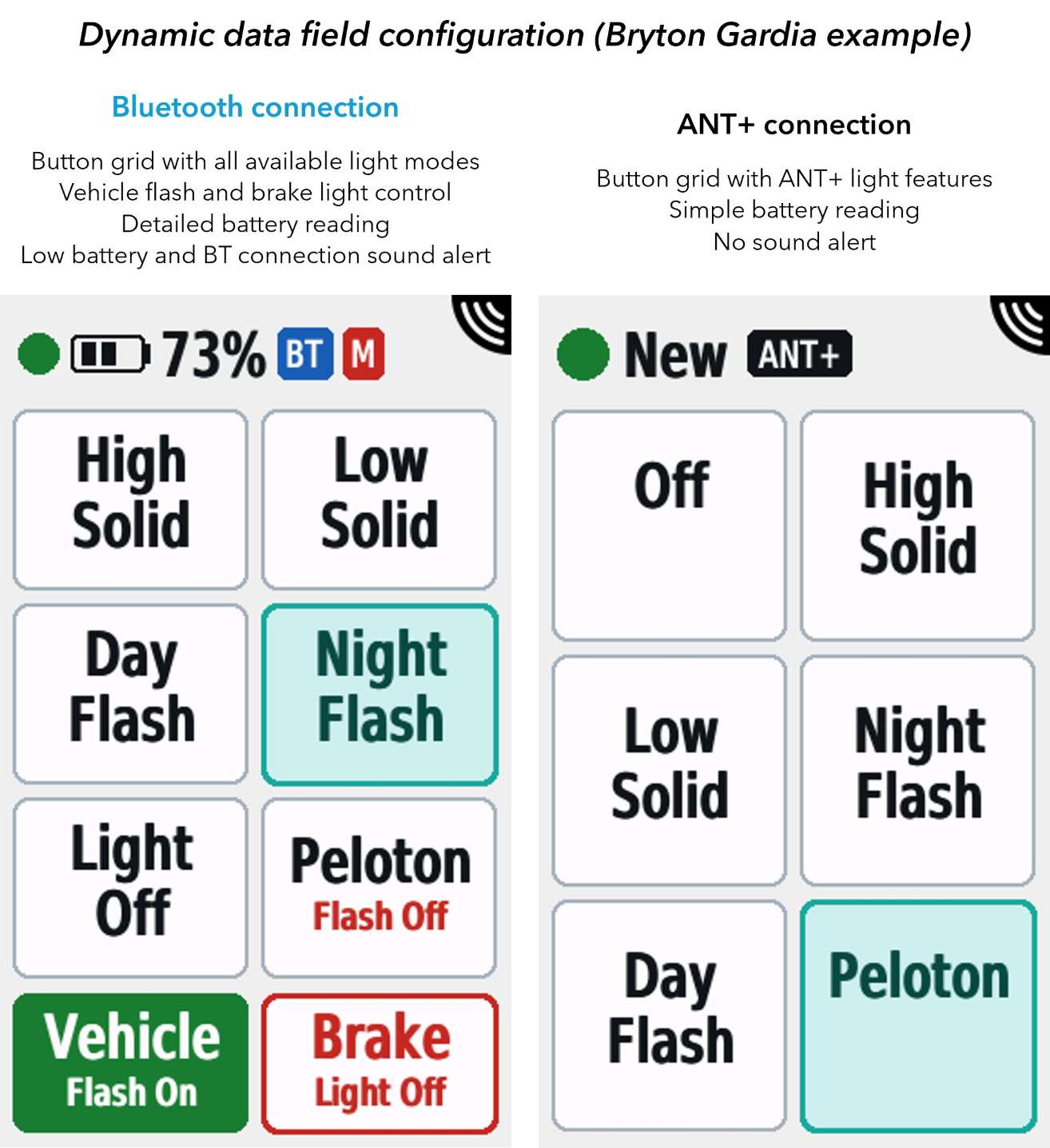

Control your radar’s light features from your Edge’s screen — without a phone app! SUPPORTED RADARS: Bluetooth: Bryton Gardia | Wahoo | Magene ANT+: Garmin | Wahoo | Trek | Lezyne | Cycplus LightUp supports concurrent ANT+ and Bluetooth connections and works with all popular radar models. No configuration, no app, no phone. Free. It adds features for Bluetooth compatible devices, such as all light modes, vehicle flash or brake light controls, full battery read and manual light control — all from your Edge’s screen, instantly and whenever you need them. It includes a preset Peloton mode for select radars, with a steady light that has vehicle flash turned off for group rides. Your mates will love it - no more blinding vehicle flash when sitting in the bunch. Tested and working on Bryton Gardia. INSTALLATION: - Download and install LightUp on your supported Edge. - Add a new data screen with one field → navigate to Connect IQ → select LightUp. - Turn your radar light on, load a profile with the LightUp data screen installed, and start a ride. ANT+ connections are instantaneous. Bluetooth connections take 10–45 seconds. - A three-tone alert indicates a successful Bluetooth connection. No alert sound for ANT+ connections as Edge displays a connection message instead. - Once connected, the connection status, battery level and connection type are displayed at the top of the data field. - The light control button grid is dynamically adjusted to the connected radar’s available light features. - ANT+ connection: Provides the same or additional features available in Garmin's Light Network, with verbatim battery status (as broadcasted via ANT+) - Bluetooth connection: Provides all available light features, including brake light and approaching-vehicle flash controls where supported. It also provides detailed battery status, displays the connection type and generates visual and audio low-battery alerts. NON-TOUCHSCREEN DEVICES: - Press MENU → WIDGETS/CONTROLS → Connect IQ Data Fields → LightUp → ENTER. - Scroll with UP and DOWN, then press ENTER to select a light mode. - Press BACK to exit the menu. *** NOT ALL RADAR MODELS HAVE BEEN THOROUGHLY TESTED *** ANT+ radars: While the compatibility list should be reasonably accurate and the dynamic button grid should adjust to your radar model, LightUp has yet only been tested on a limited number of radars. Bluetooth: Only the Gardia has been fully tested for all BT functionality - still looking for Wahoo and Magene testers. I’m happy to improve this app based and the most useful feedback is a detailed description of a behaviour or a scenario, potentially with a short video showing the problem you encountered. This helps me nail down and fix issues in future releases. If you find LightUp useful, you can buy me a flat white. Thank you! https://buymeacoffee.com/kzkvh2

Changelog: v2.1.1 - Cosmetic fixes v2.1 - Added manual (M) mode: mode changes made by pressing the button on the radar are read and displayed by the field within 3 seconds. Only works while stationary and is disabled while riding for safety reasons. - Added a red (M) label when in manual mode. - Fixed Group Ride mode not highlighting the Peloton button when vehicle flash mode was on. - Replaced the “Won’t obey” message with “No response” when light control fails. - Tidied up the top row and fixed font sizes to allow extra space for the (M) label. - Fixed the battery refresh rate for non-Bryton BT lights. v2.0.1 - Fixed flapping and stopped hijacking BT connections of other radars - Added instructions to remember own radar at startup and on reconnects for faster startup and more stable connections - Added fix to stop looking for additional radars once one is connected. v2.0 - Renamed app to LightUp as it now controls multiple radar brands - Added ANT+ support for Garmin, Wahoo, Trek, Lezyne and Cycplus with extended light control features on some models - Added BT support for Bryton Gardia, Wahoo Trackr and Magene with brake light, vehicle approach flashing and detailed battery status. Wahoo and Magene need to be tested for functionality, Varia RearVue 820 and eRTL615 are to be tested for BT connectivity. - Added dynamic button grid and button labels based on connectivity type and radar model - Added ANT+ / BT connection label at top - Added ANT+ battery indicators: New | Good | OK | Low | Critical and Charging - Fixed first battery warning threshold, raised it on BT connection to 30% - Added increasing three tone sound alert every time when connected via BT. Reverse sound alert when disconnected. No sound alert when connected via ANT+ - Added recovery of dropped connections during ride - Added simultaneous ANT+ and BT connections - Added background radar connection at ride profile load or ride startup v1.3.1 - Fixed the datafield going unresponsive during ride v1.3 - Added low battery warning: amber at 25% and red at 10% - Added low battery sound alerts at 25% and 10% v1.2 - Added non-touch screen device support for 530, 540 and 550
