E-Bike Edge MultiField

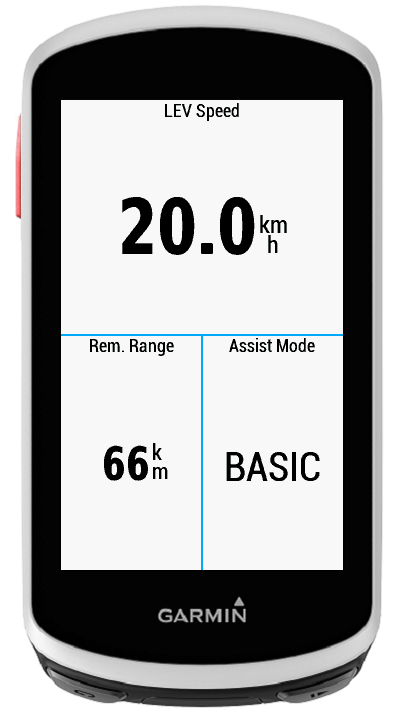

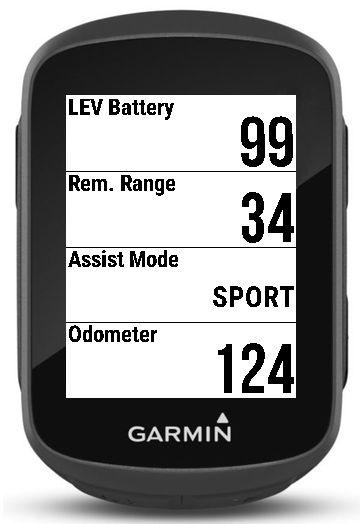

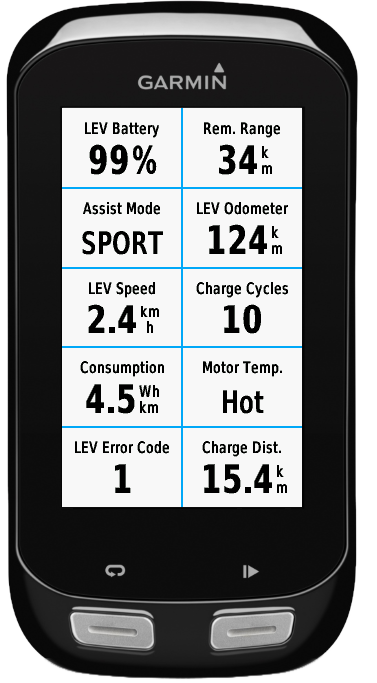

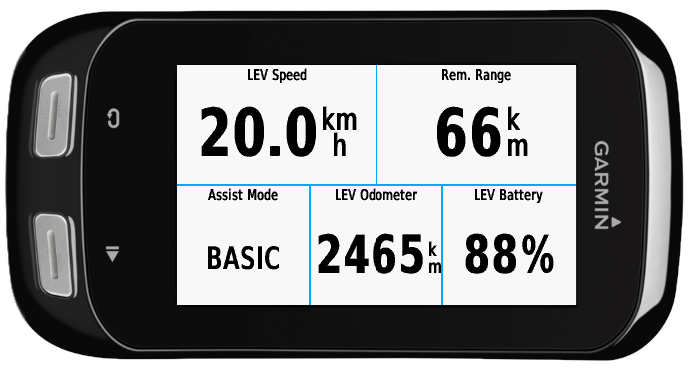

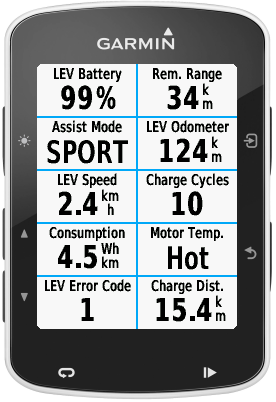

E-Bike Edge MultiField is a data field application for Garmin Edge devices, that displays up to 10 data fields from an ANT+ LEV (Light Electronic Vehicle) device. As separate data fields on the same screen cannot connect to an ANT+ LEV device or share its data, this data field renders its own grid system that mimics the native one in order to display multiple LEV fields. The source code is available on GitHub: https://github.com/maca88/E-Bike-Edge-MultiField, where issues/feature requests can be opened. Features - 18 different layouts from one to ten fields - Displaying different layouts based on the data field size - Pairing up to three ANT+ LEV devices - Tracking battery level and assist mode that is displayed in Garmin Connect - 14 different field types retrieved from ANT+ LEV device - Displaying Giant assist modes (OFF, ECO, BASIC, ACTIVE, AUTO, SPORT, POWER) - Displaying Specialized assist modes (OFF, ECO, TRAIL, TURBO) How to use 1. Download the data field application and synchronize your Garmin Edge 2. Select the data screen where you want put the data field 3. On the chosen field select "Connect IQ" - "E-Bike MultiField" 4. Pair your ANT+ LEV device (see below for instructions) 5. Use Garmin Express or Garmin Connect Mobile to configure the data field layout and fields Pairing 1. Turn your ANT+ LEV device on. 2. Select the data screen where the data field is displayed 3. With the data screen active put the Garmin Edge close to the LEV device (for Giant E-Bikes this is Giant RideControl) 4. Wait until the battery level is displayed (this should take up to 15 seconds) NOTE: This data field cannot be used with other LEV/E-Bike data fields, only one LEV/E-Bike data field can be displayed on a data screen. In case your Garmin device supports EBike connection via Sensors menu, it must be disconnected from there. For unpair a LEV device set the "Primary LEV Device Number" setting to zero by using Garmin Express or Garmin Connect Mobile. Currently tested ANT+ LEV devices: - Giant RideControl Ergo (setting "ANT channel type" must be set to "Receive Only (Slave)") Currently tested Garmin devices: - Edge 1000 NOTE: Due to differences between simulators and real devices, text may not be correctly aligned. In case you want to help with the text alignment on untested devices, check GitHub page. Field Types - Battery level (%) - Charging Cycle Count - Battery Voltage (V) - LEV Lights (ON/OFF) - LEV Odometer (km or m) - Remaining Range (km or m) - Fuel Consumption (Wh/km or Wh/m) - Motor Temperature (Cold, Warm-, Warm, Warm+, Hot) - Battery Temperature (Cold, Warm-, Warm, Warm+, Hot) - Assist Mode (For unknown LEV devices: [Current assist level] / [Total assist levels]) - LEV Speed (km/h or m/h) - LEV Error Code (1-255) - Distance on Current Charge (km or m) - Assist (0-100%) NOTE: An ANT+ LEV device may not support all field types, unsupported field values won't be displayed. Error codes - Error 1: An error occured while trying to initialize the ANT channel. Check that this data field is the only LEV/E-Bike data field displayed. - Error 2: The initialized ANT channel could not be opened. Check that this data field is the only LEV/E-Bike data field displayed. - Error 3: The selected layout is too big to fit in the selected field. Check above for the requirements of the selected layout.

Version 0.8.9: - Aligned paddings for Edge Explore 2 Version 0.8.8: - Added support for Edge 1050 Version 0.8.7: - Added better motor temperature names Version 0.8.6: - Added corrected Yamaha assist modes Version 0.8.5: - Temporally removed Yamaha assist modes Version 0.8.4: - Update Yamaha assist modes Version 0.8.3: - Added Yamaha PWX motor assist names Version 0.8.2: - Added manufacturer id field Version 0.8.1: - Added support for Edge 840, 540 and Explore 2 Version 0.8.0: - Modified pairing to pair only one E-Bike by default to prevent pairing other E-Bike. For adding additional E-bikes check: https://github.com/maca88/E-Bike-Edge-MultiField#pair-multiple-e-bikes Version 0.7.0: - Add support for Edge 1040 Version 0.6.2: - Add French translations Version 0.6.1 - Add assist modes for Mahle ebikes Version 0.6.0 - Add support for Outdoor Handhelds Version 0.5.5 - Fix reported exception Version 0.5.4 - Add units setting to optionally override the device setting Version 0.5.3 - Fix data display after device wakes up from sleep Version 0.5.2 - Fix Specialized assist mode display Version 0.5.1: - Potential fix for reported system error
