Bike Metrics

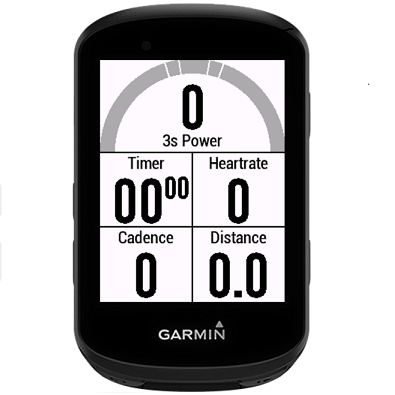

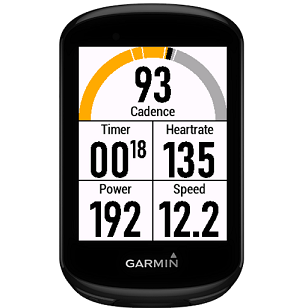

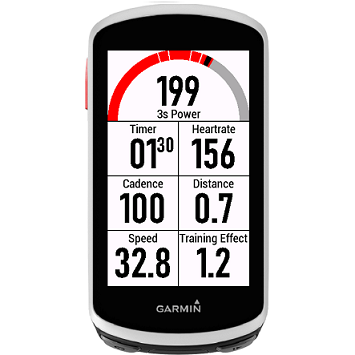

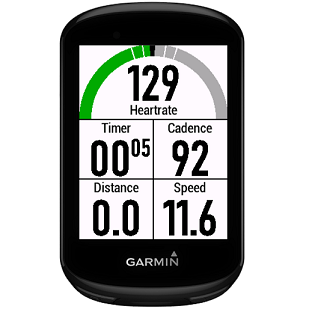

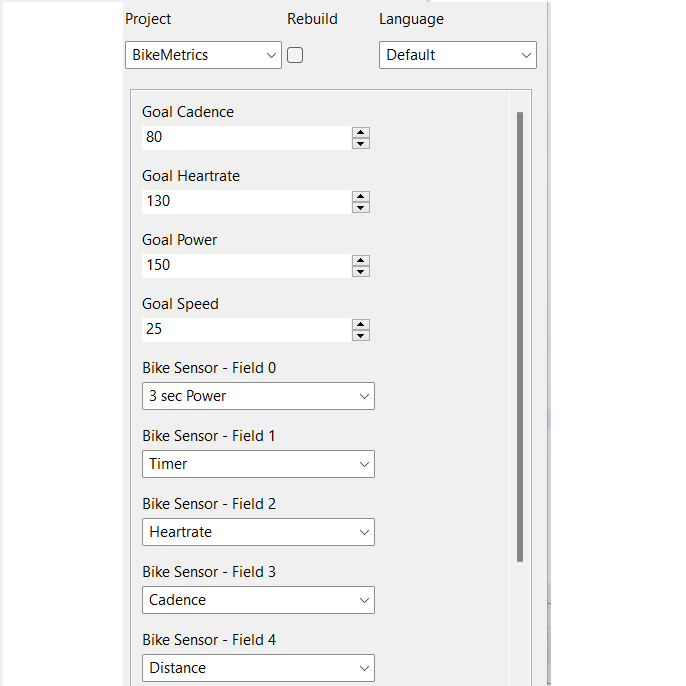

The Bike Metrics datafield is a full-screen datafield that allows flexible configuration of sensor values. Heartrate, cadence, power and speed based bike training is graphically supported. If you like this app, please feel free to donate at: paypal.me/udotha The sensor configuration can be defined via settings within Garmin Connect or Garmin Express UI. Sensor values can be chosen from a set of 22 containing clock time, timer time, altitude, distance, total ascent and descent, training effect as well as current, average and maximum values of cadence, heartrate, power, speed and grade. On edge 530/830 sensor values can be arranged in 5 fields. On edge 1030/1040 sensor values can be arranged in 7 fields. On edge 530/830 the sensor fields are numbered from 0 (top) to 4 (bottom right). On edge 1030/1040 the sensor fields are numbered from 0 (top) to 6 (bottom right). Field zero is reserved for heartrate, cadence, speed, power and 3 seconds power sensor values. The value of these sensors is graphically displayed as an arc. The color of the arc can be green, yellow or red. A green arc Indicates that the current sensor value is within10 percent of the defined goal sensor value. A yellow arc indicates that the current sensor value is more than 10 percent and less than 20 percent off the defined goal sensor value. A red arc indicates that the current sensor value is more than 20 percent off the defined goal sensor value. The black line in the arc indicates the average sensor value. The goal sensor value of heartrate, cadence, power and speed are defined via settings within Garmin Connect or Garmin Express UI. Example - Cadence based bike training: Define your goal cadence (e.g. 85) and select cadence in field zero via settings within Garmin Connect or Garmin Express UI. Select other sensor values in fields 1 to 4 (edge 530/830) or 1 to 6 (1030/1040) as you like. Ready. Installation: After downloading Bike Metrics from the store, proceed with the following installation steps 1) Select a profile 2) Select Data Screens 3) Add new 4) Select Data Screen 5) Select Connect IQ 6) Select Bike Metrics 7) Select Back and Done Please note that no warranty or liability is accepted for the download or use of this product, or any injury, loss or damage caused by its installation or operation.

Check out my other apps: https://apps.garmin.com/en-US/developer/6a5b2773-9127-4bd7-8e5d-844d21bbf046/apps V 2.1.0: Added devices Edge 540 / 540 solar, Edge 840 / 840 solar V 2.0.6: Added Grade (Kalman Filter) V 1.0.2: Timer time layout changed for better readability V 1.0.1: Bug fix in metric vs. imperial distance check V 1.0.0: Imperial units added (distance in miles, pace in miles per hour, altitude/ascent/descent in feet), according to device settings V 0.0.1: Initial version A clone of Bike Metrics is available here: https://apps.garmin.com/en-US/apps/4d6f903b-5644-48ba-9f00-41c7501730cc
