MapDashboard 4 field version (large font)

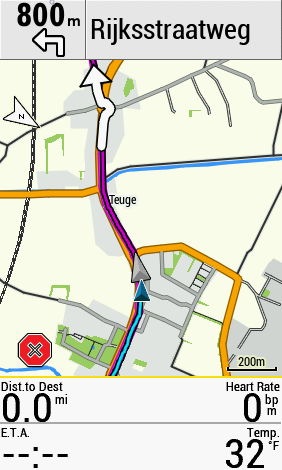

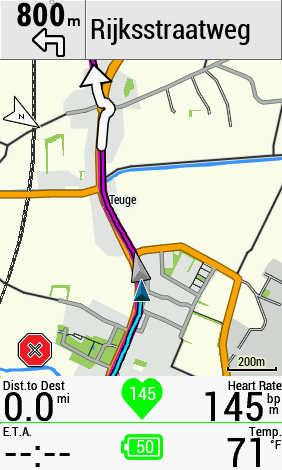

4 field version of MapDashboard with only 4 fields but bigger font. This is a Datafield for usage on the map screen while navigating, it doesn't show the map itself. Garmin allows only two datafields on the map screen. If you want more data you can use this datafield as a mini dashboard below your map. The dashboard contains 4 fields which are configurable via Garmin Express or Garmin Connect Mobile. The line changes colour to indicate in which HR-zone you are. To use this datafield go to Settings - Activity profiles - [your profile] - Data screens - Map - Layout and Datafields - Choose "1 " - Choose Connect IQ from the list of data fields - choose MapDashboard4. You may have to reboot your Edge before the datafield shows. The field currently supports English, French, German, Spanish, Portuguese, Czech, Italian, Danish, Norwegian, Swedish, Finnish, Polish and Dutch. Only the Edge 1030 (Bontrager) and the Edge Explore are being supported. The other Edges do not have enough space. If you want to pay me a beer to thank me, please donate: https://www.paypal.me/EJdeVries To configure the fields do the following with Garmin Connect Mobile on Android: Open the Garmin Connect Mobile App. (The Edge should be on and connected to the phone.) Tip the icon with three bars in the upper left corner. Choose Garmin devices and choose your device. Select Manage Activities and Data fields then choose Data fields. Select the field you want to change and choose settings. You can now change the datafields for the two rows. After applying the changes choose OK, synchronize the Edge and reboot it. A more detailed manual can be found here: https://bitbucket.org/e_j_de_vries/manuals/src/master/MapDashboard4.md P.S. This app requires access to: "Run in the background when it is not active (potentially affecting battery life)" - This is because the app starts a background process to retrieve the current temperature (every 5 minutes), this is the current way to read the temperature from the sensor.

1.24.0 Lap values get a reset after a workout step has ended. Heart rate zone is rounded to 1 decimal. 1.23.1 Fixed bug in power powerbalance 1.23.0 Added field "gear indexes" and fields for power balance 1.22.1 Fixed layout for Edge 1050. Hide headers while riding only starts when riding more than 3.6 km/h to make the appearance less nervous when standing still. 1.22.0 Added support for the Edge 1050 (if you experience problems on an Edge 1050 please use the contact developer link) 1.21.1 Updated German language file 1.21.0 Added rear derailleur field that shows the current index/sprocket of the rear derailleur 1.20.0 Added Battery field 1.19.1 Fixed heading field. Updated layout for Edge 540 and 840. 1.19.0 Added support for Edge 540 and 840 1.18.1/2 Improved readability of heart rate 1.18.0 Internal redesign. Added fields: average lap power, elapsed time, total stop time and moving percentage. 1.17.0/1/2 Added support for the Edge Explore 2, layout update for the Edge 1040. 1.16.0 Added support for the Edge 1040 (if you experience problems on an Edge 1040 please use the contact developer link) 1.15.0 Added average cadence 1.14.1 Bugfix 1.14.0 Added kg/Watt, version of field is now visible in settings menu. 1.13.0 Added Lap time and lap distance, average power, maximum power and FTP % field. You have to enter your FTP in the settings manually, I'm not able/allowed to read it from your profile 1.12.0 New algorithm (Least Squares Fitting) to calculate grade. 1.11.0 Removed field "Remaing ascent", the value was not accurate. Added ETE (Estimated Time En route), larger font for the heart rate in the heart rate icon on the Edge 1030. 1.10.0 Added field "Remaing ascent", updated calculation of grade. Added option to hide headers while riding and use a larger font for the values. 1.9.2 Added support for GPSMAP 66 by request. 1.9.1 Fixed bugs, HR zone and next solar event were not working when used as top left field. Improved memory usage. 1.9.0 Added field for next solar event (sunrise/sunset) for this your position is needed 1.8.0 Support for Edge 1030 Plus, change fields on the fly (without reboot). Fields Heart Rate zone and Training Effect added. 1.7.1 Fixed bugs, wrong order of loading resources. Worked in the simulator, not on real devices :-( 1.7.0 Update of layout Edge 830/530, translation to Polish. 1.6.3 Fixed bugs introduced in version 1.6.1 1.6.2 Fixed bugs introduced in version 1.6.1 1.6.1 Made loading properties more robust 1.6.0 Added support for Finnish, Norwegian and Swedish 1.5.1 Reset distance to destination/next point when navigation has ended. 1.5.0 Added support for Danish, built with IQ SDK 3.1.5
