TTWalker260

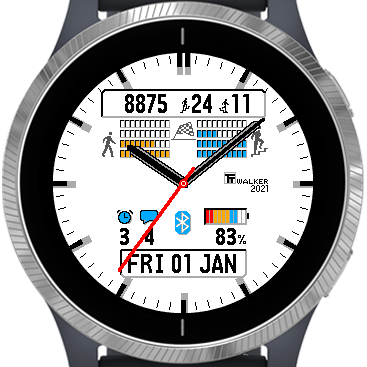

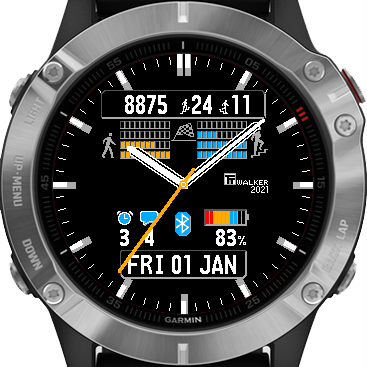

*** NOTICE *** Since I don't have a real watch device, this watch face is tested only on a development simulator run on PC. An analog watchface with an indication of steps , floors climbing and descending. The minute hand moves little by little at your chosen time interval. The time interval can be selected from 6, 10, 15, 20, 30, 60 seconds. When the minute hand moves at an interval of 6 seconds, the amount of movement of the tip of the minute hand at one time is approximately 1 dot, considering the resolution of the watch face (260 dots × 260 dots), and it seems to be moving continuously apparently. Shortening the time interval may exceed the processing capacity of the device. In such a case, the time interval will be set one step longer. Then, the restart procedure is displayed on the watchface. The display mode of the second hand can be selected from 'Always On', 'Off in Sleeping except On Gesture', 'Off (Minute hand moves little by little)', 'Off (Minute hand moves once a minute)'. The sleep time is calculated using the BedTime and WakeTime data in UserSettings of Garmin Connect. When the minute hand and the indicated data overlap, the gesture makes the hands thinner for a few seconds to make it easier to read. The steps and floors climbing are displayed as a blocks graph and a number. One block is equivalent to 5% of the target value, and 20 blocks are stacked when the target is achieved. The target value is the value of daily step/floor goal in Garmin Connect. If less than 5% of the target value, 40 red blocks are displayed as a warning and urge to exercise. As the exercise progresses, the block color changes from red to yellow to blue. You can select white or black background color. You can select from 28 date formats. The battery status is displayed as a bar graph and a number. The connectivity status is displayed as Bluetooth icon. The notifications status is displayed as an icon and the number of notifications. The alarm status is displayed as an icon and the number of alarm settings.

Ver.2.0 on 12 DEC 2021: Added option to display floors climbed down for the day. Added option to draw the hands thinly with gesture when the minute hand overlaps the indicated data. Renewed icon design. When the processing capacity of the device is exceeded, the setting is automatically changed and the restart procedure is indicated. Ver.0.9 on 30 MAY 2020 : Initial version.
