Tactical DAY Hybrid Watch Face

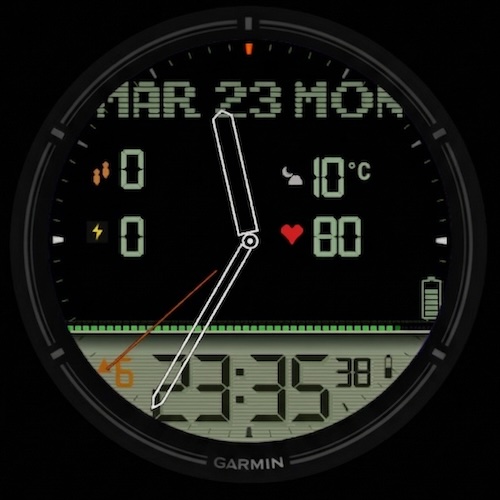

A precision-engineered hybrid watch face blending analog timekeeping with a tactical LCD data panel . DESIGN The face divides into two distinct zones: a deep matte plate across the top for the analog hands and health telemetry, and a scanline-textured LCD panel along the bottom for digital time. The transition between zones uses a subtle 24-step gradient, giving the face a layered, instrument-like depth. Every pixel is hand-tuned — no default system widgets, no generic layouts. ANALOG HANDS Skeleton obelisk hands with a tapered tip and a 1px black halo around a white outline. The hour hand is wider and shorter; the minute hand runs nearly to the tick ring. The second hand floats clear of the centre pinion — a single orange line with a black shadow stroke. A three-ring pinion cap (black border, white ring, solid dot) anchors the assembly. TELEMETRY — CENTRE PLATE Four live readouts arranged in a 2x2 grid on the dark plate: - Steps (with icon) - Calories (with icon) - Heart rate (with icon) - Current weather temperature + condition icon Weather uses 11 distinct condition icons: sun, moon, partly cloudy day/night, cloud, rain, heavy rain, snow, storm, fog, and wind. All sensor data is cached per minute so the face never wastes CPU on redundant reads. STRESS HISTOGRAM A 64-bar chart spanning the full day (midnight to midnight) sits just above the panel boundary. Each bar covers ~22 minutes of stress history. Bars are colour-coded in three tiers — resting, moderate, and high stress — so you can read your entire day at a glance. A single bright cursor marks the current moment. Future bars show a faint grid so the time axis is always visible. BODY BATTERY BAR A 50-segment horizontal gauge sits at the plate/panel boundary. Segments fill from left to right. Empty segments show as hollow outlines against the panel background for a clean, readable state. SUN COUNTDOWN An amber triangle and hour count in the bottom-left corner of the LCD panel shows how many hours remain until the next sunrise (triangle pointing up, night mode) or sunset (triangle pointing down, daytime). The calculation is astronomical — it uses your latitude from the Weather API when available and falls back to 48 N. No internet connection required for the indicator to work. DATE The date reads as MMM DD DOW (e.g. MAR 21 SAT) in a custom pixel font at the top of the face, rendered in muted military green against the dark plate. DIGITAL TIME PANEL The bottom LCD panel shows HH:MM in a large custom LED font with a ghost/depth layer offset by a few pixels — simulating the look of a backlit LCD display. Seconds appear to the right in a smaller LED font. A battery icon sits at the far right edge of the panel. CUSTOMISATION Five colour palettes selectable via the on-watch Menu button or Garmin Connect app: - Tactical: olive-green LCD panel, orange accent (default) - Amber: near-black browns with burnt-orange readouts - Blue: dark navy with cyan readouts - Silver: warm light-grey face with red accent - Red: near-black with deep red readouts Three tick styles: - Standard: classic tapered trapezoid markers - Bold: wider trapezoids for high-contrast readability - Minimal: thin radial lines for a clean, modern look Five lume colours for the analog hands: - Orange (default), Blue, White, Red, Amber Settings are stored on-watch and also configurable from the Garmin Connect mobile app. PERFORMANCE All trigonometry for tick marks is precomputed at layout time — 264 calls saved per frame. Sensor reads (body battery, stress history, weather) are cached and refreshed only when the minute changes. The stress histogram pre-allocates its 480-sample buffer at startup to avoid per-frame memory allocation. The result is a smooth, power-efficient face with no perceptible lag. Compatible with: Amoled 51mm

Tactical Hybrid pushes past what watch face design normally attempts on a Connect IQ device — both in visual quality and in the depth of data it renders entirely in custom-drawn code. FULL-DAY STRESS VISUALISATION Most watch faces show a single stress number. Tactical Hybrid shows your entire day. The 64-bar histogram maps every stress reading since midnight into a colour- coded bar chart — olive green for resting, amber for moderate, burnt sienna for high. You can see at a glance whether your morning was calm, when your afternoon spike happened, and how you are trending now. The cursor notch marks the present moment precisely. No other watch face on the platform renders a full-day physiological chart in real time like this. ASTRONOMICAL SUN COUNTDOWN WITHOUT A WEATHER CONNECTION The sunrise/sunset indicator does not depend on Garmin's Weather API. It runs a full declination/hour-angle calculation on the watch itself — using your GPS latitude when available and a sensible fallback otherwise. The result updates every minute and tells you exactly how many hours remain until the sun rises or sets. The directional triangle (up for sunrise approaching, down for sunset approaching) makes the state immediately readable with a single glance. This is navigation-instrument thinking applied to a consumer wearable. HYBRID ZONE LAYOUT The split between the dark matte plate and the scanline LCD panel is not a cosmetic trick — it is a structural design decision. The two zones use fundamentally different rendering: the plate uses flat fill and anti-aliased geometry; the panel uses scanline texture, a 24-step gradient blend at the boundary, and dual-layer ghost/active text. The result looks like a physical instrument rather than a software screen. SKELETON HAND RENDERING The analog hands use a two-pass skeleton stroke: a 4px black outline is drawn first, then a 2px white line is drawn on top. This produces a clean 1px black halo around a white outline with no fill — the dark plate is visible through the centre of each hand. Combined with the tapered obelisk tip and the floating second hand, the result is a hand set that reads clearly against any palette and at any angle of the display. FIVE FULLY INDEPENDENT PALETTES Each of the five colour palettes is not a tint overlay — every palette defines its own complete set of colour variables: panel background, active text, ghost text, accent, lume faces, specular highlight, body battery fill, histogram tiers, hub ring, and plate text. The Silver palette additionally switches the entire face to a light background and clips the rectangular plate to the round bezel using a per-pixel boundary calculation. This level of palette independence is rare in watch face design. ZERO-COMPROMISE PERFORMANCE ARCHITECTURE Every optimisation decision was made deliberately: - Tick trig precomputed once at layout (saves 264 Math calls per frame) - Sensor buffers pre-allocated at startup (no per-frame malloc) - Per-minute caching for weather, body battery, histogram, and sun data - Settings cache with early-return so colour variables are only recomputed when the user actually changes a setting - Two-pass body battery bar uses 2 setColor calls instead of ~100 The face runs cleanly at 1Hz in active mode and respects the always-on display power budget without sacrificing any data density.
